wood chipper

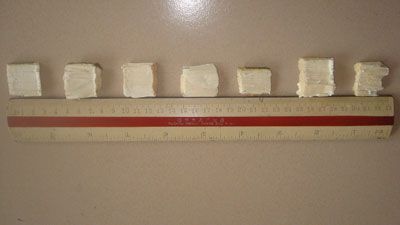

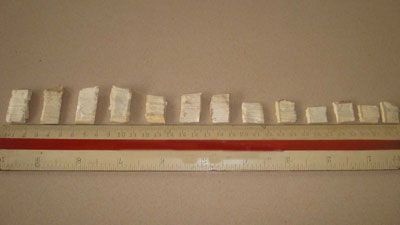

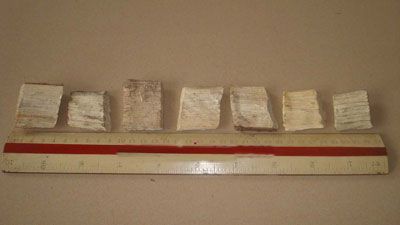

1-2cm wood chips 2.5-2.8cm wood chips 3-4cm chips
1-2cm wood chips 2.5-2.8cm wood chips 3-4cm wood chips

Wood chipper is the specific machinery for crushing wood materials to small pieces. It is an essential machinery for large wood production line including wood pellet line. This wood chipper can process most kinds of wood materials including small wood blocks, wood logs, straw, planks, twigs and tree branches. With this chipper machine, you can get perfect chips with desired length and uniform chip thickness.


GEMCO wood chipper machine is equipped with electricity control cabinet, motor and 1 set of extra Knives with 4-6 pieces.

wood chipping machinery wood chipper machine wood chipping

Technical Parameters:

Model BX215
Rotor Diameter(mm) 500
Number of rotor knives(pieces) 2
Feed opening(mm) 180x400
Rotor Speed(Rpm) 592
Feed Speed(m/min) 38
Stock processed max diameter(mm) 160
Chip length(mm) 35
Capacity(m3/h) 4-5
Main drive motor power(KW) 45
Feed roller motor power(KW) 2.2x2
Weight(t) 2.9
Overall dimensions(LxWxH)(mm) 1540x1240x1020


The diameter of raw material needs to be less 200mm and the length should be less than 1000mm. After chipping, size of finished wood chips can be less 3 mm on thickness, and less 15-25 on length. The size of the finished wood chip is adjustable by changing the distance of the knives.
